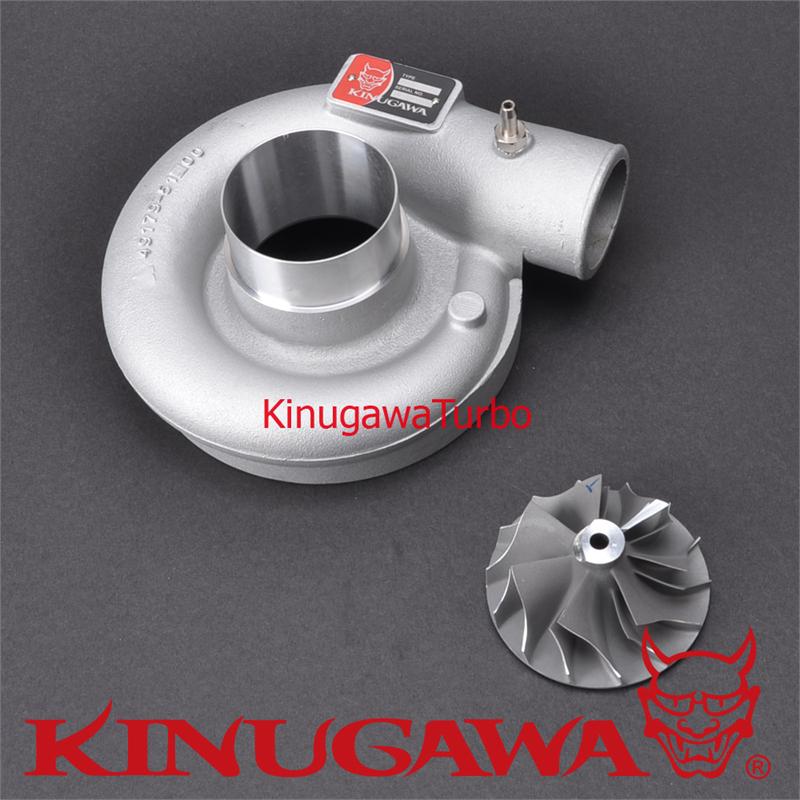

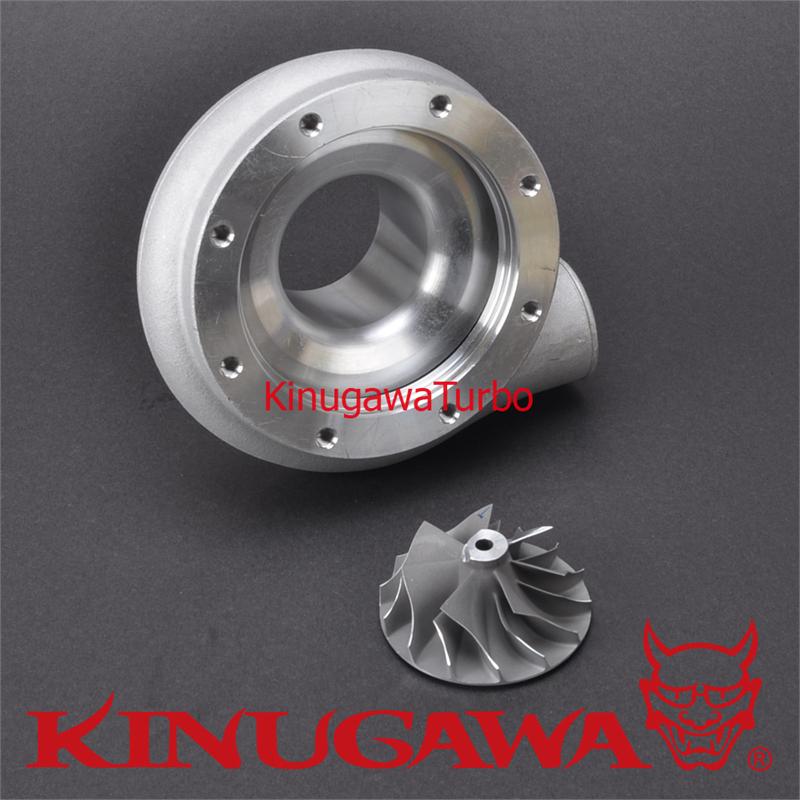

Turbo Compressor Housing TD05 / TD06 + 60-1 Wheel 2.4inches inlet
|
Item Number: 305-21015-028
* Whole number only
|
|
| Application |
Upgrade small 16G, 18G, 20G, 17C 19C to Super Monster 60-1 Turbo |
| Cover Dimension |
- Inlet OD : 62 mm / 2.44 inch
- Outlet OD : 50.3mm / 2 inch
|
| Wheel Dimension |
- Inducer Dia. 58mm 2.324 inch
- Exducer Dia. : 76.2mm / 3 inch
- Total Height : 38.8mm |
| Balance |
Balanced on Schenck / Ready to use |
| Note |
Garrett 60-1 wheel was machined to fit MitsubishiTD05/TD06 turbine shaft.
|
|
|
|
|
