Turbo compressor upgrade Kit Subaru TD04L-13T to 19T / Extra 30% Airflow
Item Number: 305-22012-001
* Whole number only
|
|
Product Info
|
Item Name
|

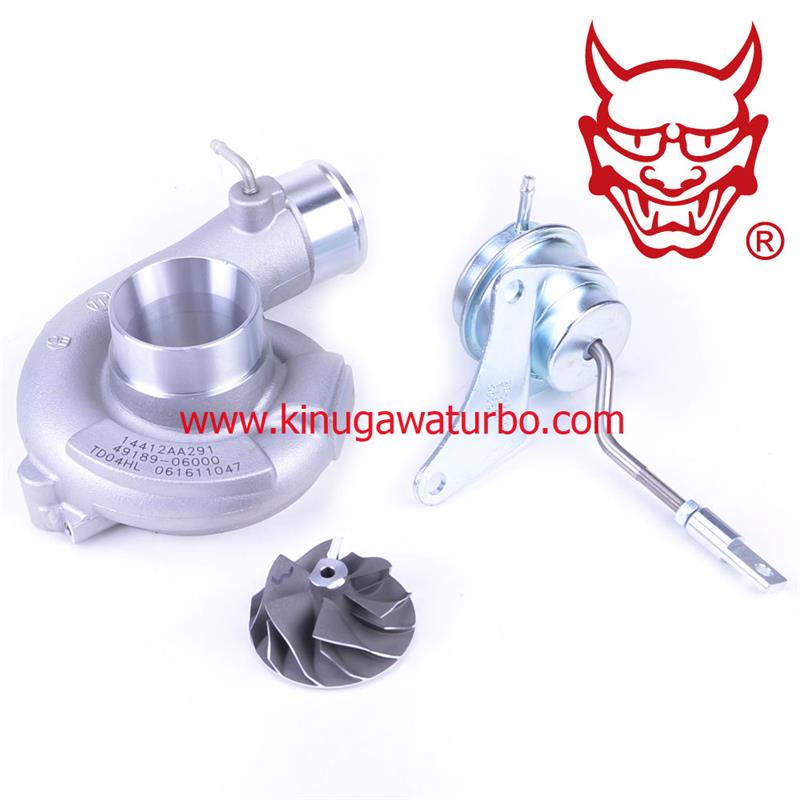

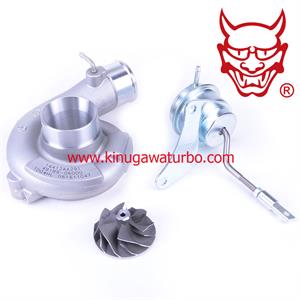

Subaru stock TD04L TD04HL Turbo Upgrade 19T Compressor Kit
|
Item No.
|
1 x 0500-810-029 ( Wheel)
1 x 0800-813-119 (Housing)
1 x 0900-821-180 (0.8 Bar Actuator)
BOM: 305-22012-001
|
Cover Dimension
|
- Inlet OD : 60 mm / 2.35 inch
- Outlet OD : 50.5 mm / 1.95 inch
|
Wheel Dimension
|
- Inducer: 46 mm
- Exducer: 58 mm
- Height: 26.2mm
- Tip: 5.8 mm
- No. of Blades : 6/6
- Bottom Type: Super Back
|
Application
|
- Upgrade stock Subaru TD04L-13T or TD04HL-13T turbo to 19T Monster turbocharger
|
Quantity
|
- 1 set as picture
|
Note
|
- What you see is what you will get

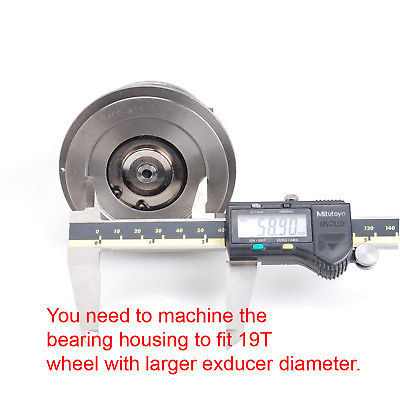

- You need to machine the bearing housing to fit the 19T wheel with larger exducer diameter.
- 0.5bar, 1 bar, 1.2 bar and 1.5 bar actuator is available, please contact us if
you need it.
|
|
|
|
|
