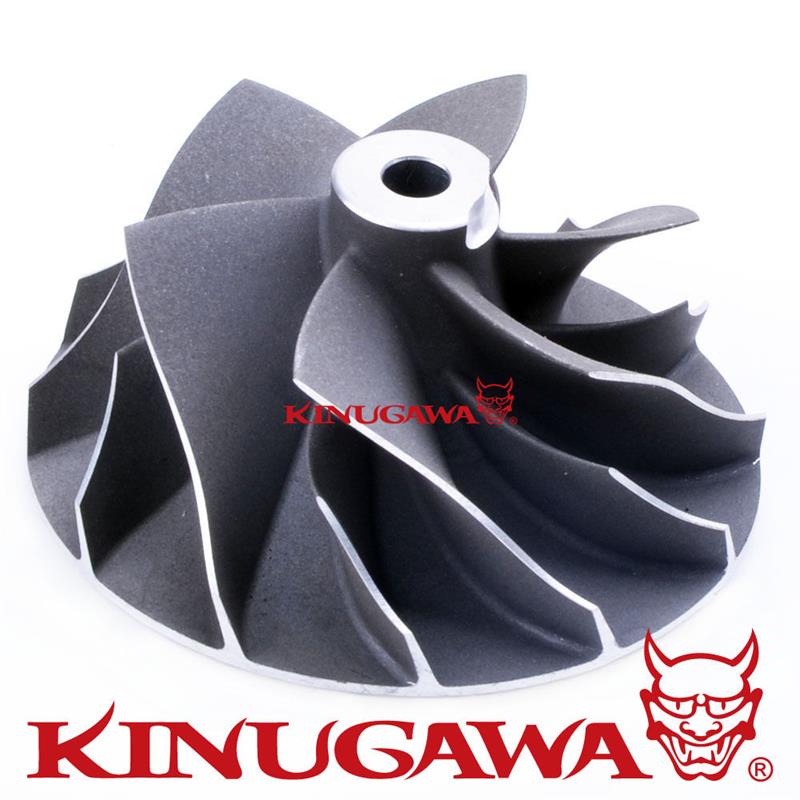

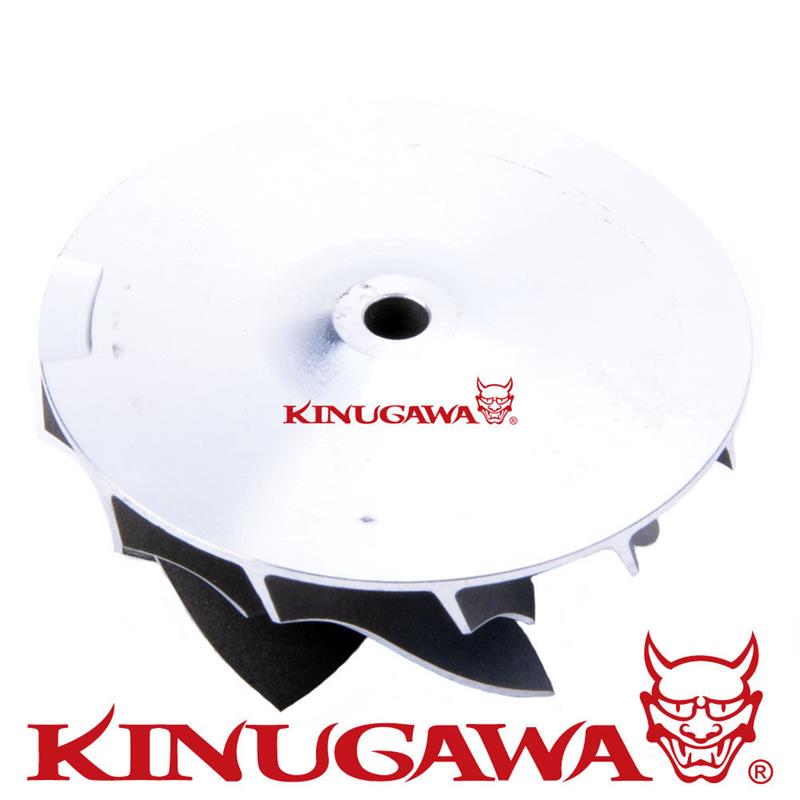

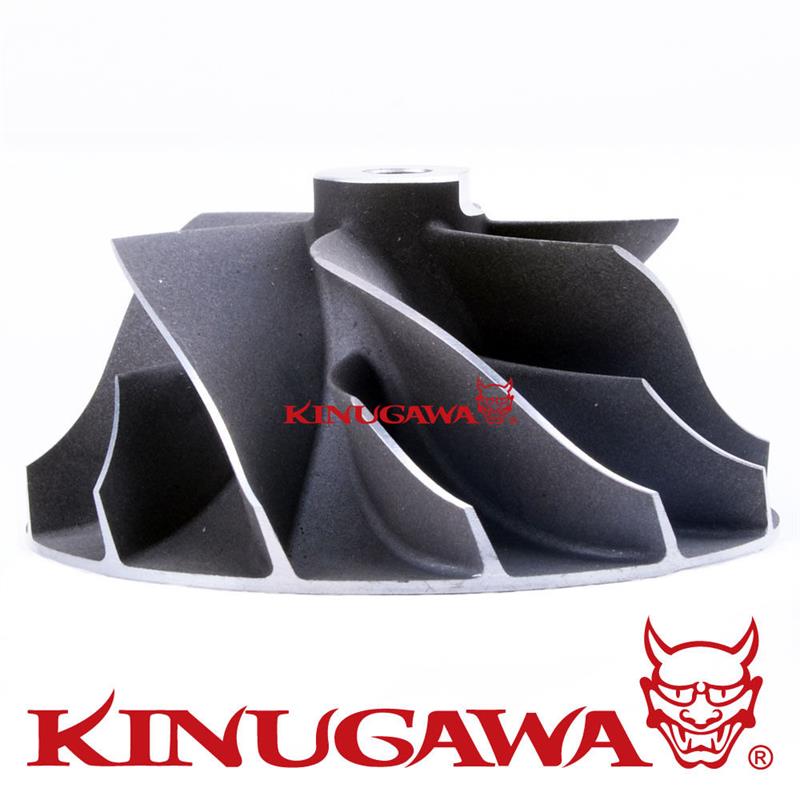

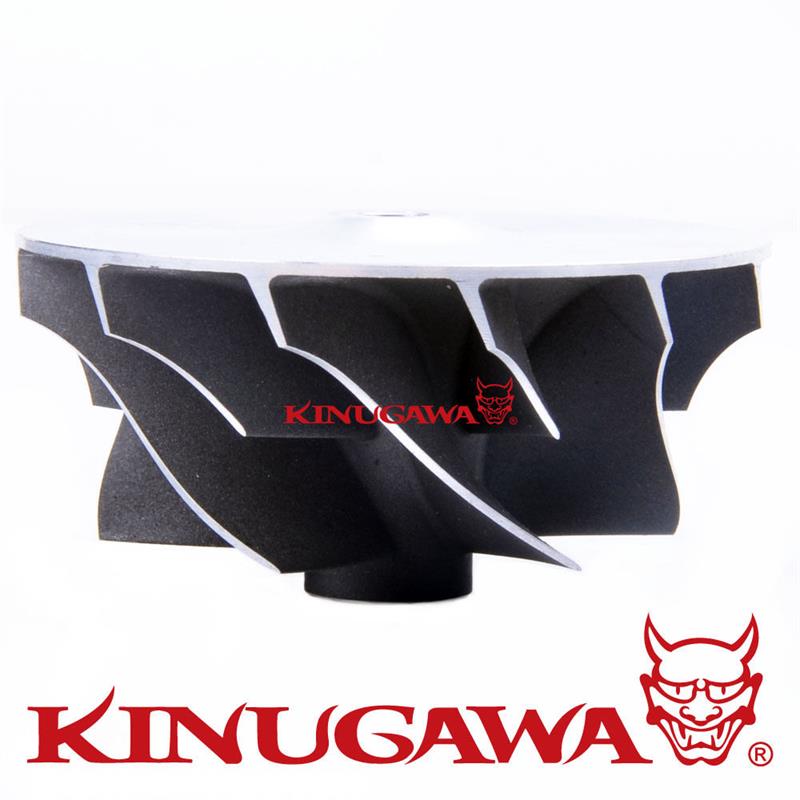

Turbo Compressor Wheel fit Garrett T3 TA31 409096-0009 44.65 / 60 mm 6+6 Blades
|
Item Number: 405-03059-001
* Whole number only
|
|
|
Garrett T3 TA31 TBO3 Series Turbo Compressor Wheel (Wheel P/N : 409096-0009)
|
|
PART NO.
|
405-03059-001 |
|
Item Name
|
Garrett T3 TA31 TBO3 Series Turbo Compressor wheel
|
|
Application
|
- Garrett TBO390 454039-0001 Turbo
- Garrett TBO373 465133-0001 / 465133-0002 Turbo
- Garrett TBO377 465159-0001 / 465159-0002 Turbo
- Garrett TBO381 465177-0004 / 465177-0005 Turbo
- Garrett TCO301 465296-0008 Turbo
- Garrett TAO318 465379-0004 Turbo
- Garrett TBO386 465499-0001 Turbo
- Garrett TBO360 466846-0002 Turbo
- Garrett TBO361 466962-0001 / 466962-000102 Turbo
|
|
Wheel P/N
|
409096-0009
|
|
Spec
|
44.65 / 60.0 mm (Inducer / Exducer Dia)
|
|
Trim
|
55
|
|
Bore
|
6.35 mm
|
|
Overall Height
|
320 mm
|
|
Bottom
|
Super Back
|
|
Blades
|
6+6
|
|
Situation
|
Brand New and Balanced
|
|
Material
|
Aluminum Alloy
|
|
Made By
|
Kinugawa Turbo
|
|
|
|
|
|
