Genuine Turbo Repair Kit Mitsubishi TD05 TD06 Flat Back 12A 14C 17C 19C
|
Item Number: 411-02014-006
* Whole number only
|
|
| Application |
- Mitsubishi TD05/TD05H/TD06/TD06H Turbo With Flat Back Wheel such as TE05-12A, TD05-12A, TD05-12B, TD05H-14B, TD06-14C, TD06-17C, TD06-19C Turbo
- TD05-12A / TE05-12B: SAAB 900 Turbo
- TD05H-14B: Mitsubishi DSM 1G

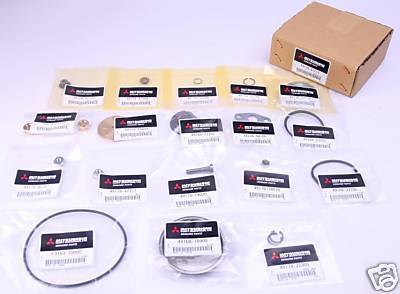

- TD06-17C, TD06-19C Turbo: GMC TurboAll parts shown on picture. (Complete Full Kit ) |
| Description |
- 49168-18900 : 1 x Heart Plate (Heart Shield)
- F3153-10000 : 1 x O-Ring (CHRA & Cover)
- 49168-22202 : 1 x Oil Deflector
- 49170-14020 : 1 x Bolt for Clamp ( CHRA & Turbine Housing)
- 49179-14010 : 1 x Nut for Clamp
- 49178-22300 : 1 x Snap Ring (For Journal Bearing)
- 49168-23201 : 1 x C-Clamp ( Insert)
- 34336-04100 : 1 x Gasket for oil drain Pipe
- 49168-22100 : 1 x O-Ring (Insert)
- 49178-42210 : 1 x Nut for turbine shaft (Left)
- 49178-42201 : 1 x Nut for turbine shaft (Right)
- 49178-21400 : 2 x Journal Bearing
- 49178-21600 : 1 x Thrust Bearing
- 49170-23100 : 1 x Piston Ring (Compressor side)
- 49178-23100 : 1 x Piston Ring (Turbine Side)
- 49178-42100 : 1 x Thrust Sleeve
- 49178-42300 : 1 x Thrust Ring
- 49168-22501 : 1 x Insert (Flat Back)
|
| Noted |
Rebuild Instruction will be emailed to those who purchase this item when we get paid. |
|
|
|
|
