Turbo Turbine Housing Mitsubishi 4D56T 2.5L TD04 3 Bolt Outlet L200 L300 Delica
Turbo Turbine Housing Mitsubishi 4D56T 2.5L TD04 3 Bolt Outlet L200 L300 Delica
Price:
$139.00
Item Number:
407-02013-003
Manufacturer:
Kinugawa
Quantity:
* Whole number only
Email this page to a friend
Application
- Fit TD04 / TD04-10T turbo on 4D56T 2.5L Diesel PAJERO / L200 / L300 / Montero Turbo
( 49177-01504, 49177-01505, 49177-01514, 49177-01515, 49177-01521, 49177-01531)
- It can NOT fit TD04-9B Turbo such as 49177-01500, 49177-01501, 49177-01510, 49177-01511.

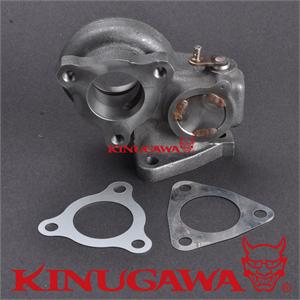

- It can just fit the CHRA with A type of heat shield as picture 4th. ( Type of Shortest Heat Shield)
Detail
-

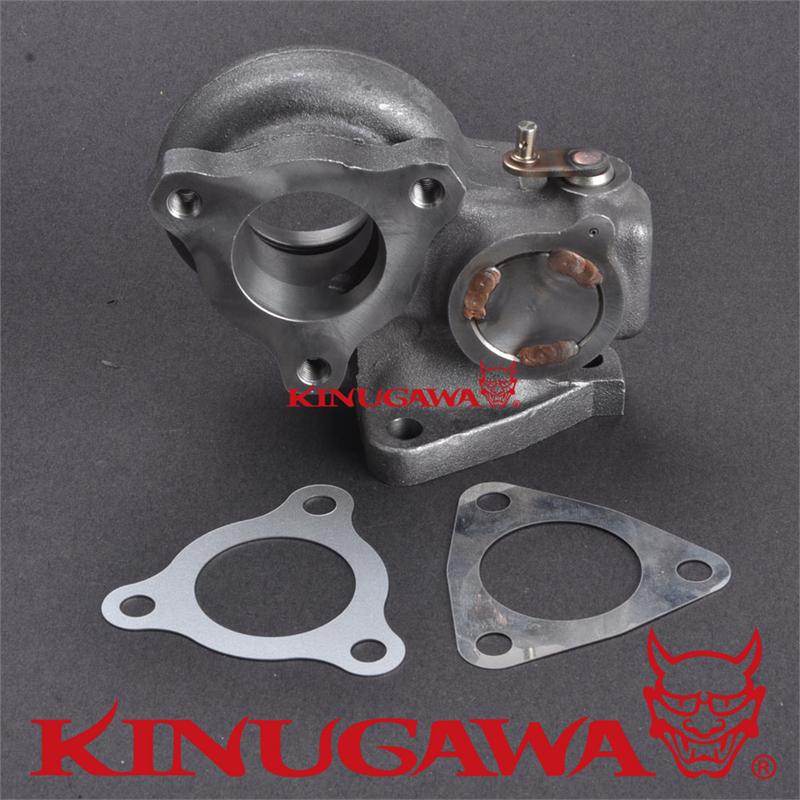

1 x Turbine Housing
-
1 x Turbine Inlet gasket
- 1 x Turbine Outlet Gasket
Nozzle Area
4 cm^2
Material
FCD60
