Upgrade Turbocharger IHI RHF5H VW Golf GTI CC Scirocco Jetta / AUDI A3 300 HP

Product Information

Item Name

Kinugawa VW Golf GTI MK6 / AUDI A3 IHI RHF5H Bolt-On Upgrade Turbocharger (290 HP)

P/N.

Application

-  VAG AUDI / VW / SKODA / SEAT 1.8T / 2.0T Transverse Engine.

-  VW 2.0T Golf GTI, CC, Scirocco, Polo, Beetle, Jetta, Tiguan, Passat, Sharan / AUDI A3,

-    SKODA, SEAT Transverse Engine 1.8T / 2.0T Engine.

Situation

-    Brand New In Box

-    Both Compressor wheel and turbine wheel were upgraded from Stock RHF5 to RHF5H Spec.

-    Upgraded from OEM Genuine IHI RHF5 MK6 Turbo.

-    This upgrade turbo can support 285~310 BHP.

-    Bolt on directly without modification.

-   This turbo can replace and bolt up to replace MK5 turbo including GTI MK5.

Wheel spec

-    Compressor wheel: RHF5H 43.3/56mm (Ps. Stock one RHF5 40.6/52.5mm)

-    Turbine wheel: 40/53 mm RHF5H (Stock one is RHF5 40/45mm )

Balance

-    Balanced By SCHENCK MBRS 110 Germany.

-    Ready to Competition

Bearing

Type

-    Journal Bearing as stock

Cooling

-    Oil and water-Cooled as stock one

Actuator

Pressure

-    Stock actuator will go with this turbo.

-    We can offer adjustable actuator with different spring. 1.5bar is priority (P/N 309-07078-006)

Max Hp

290~330HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

Kit Includes

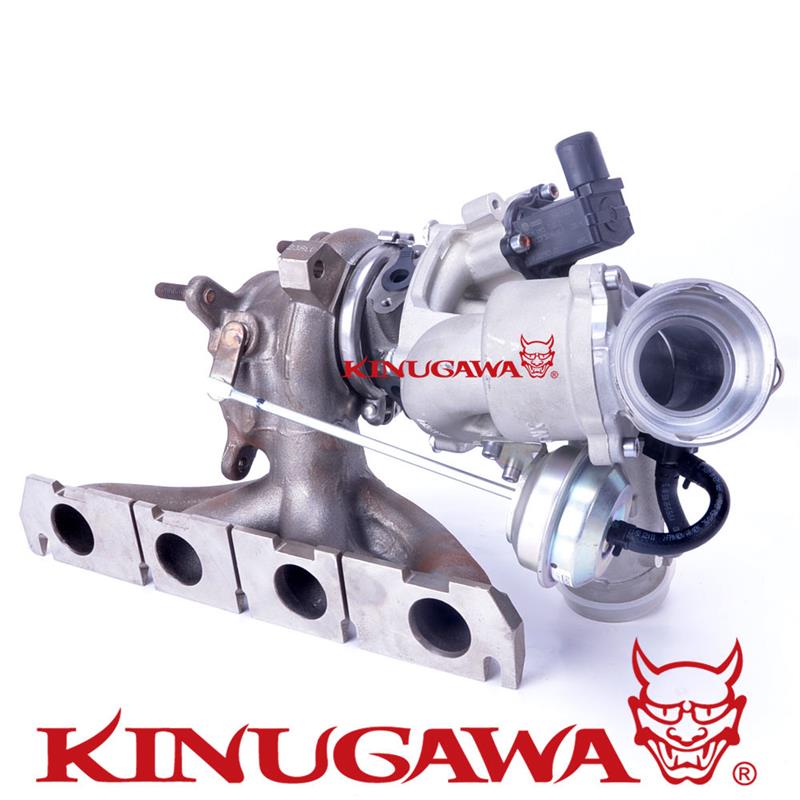

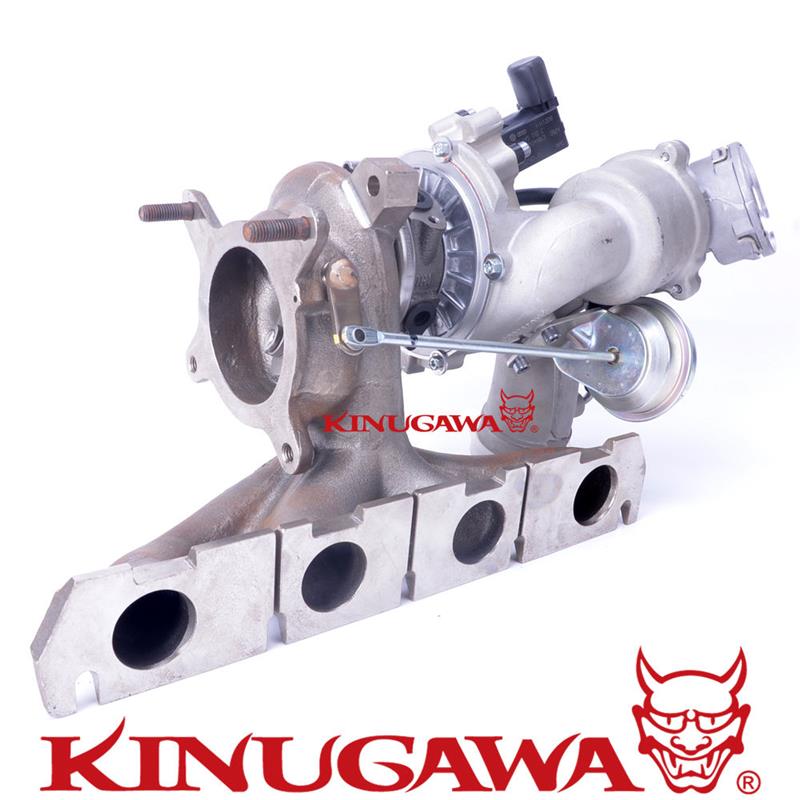

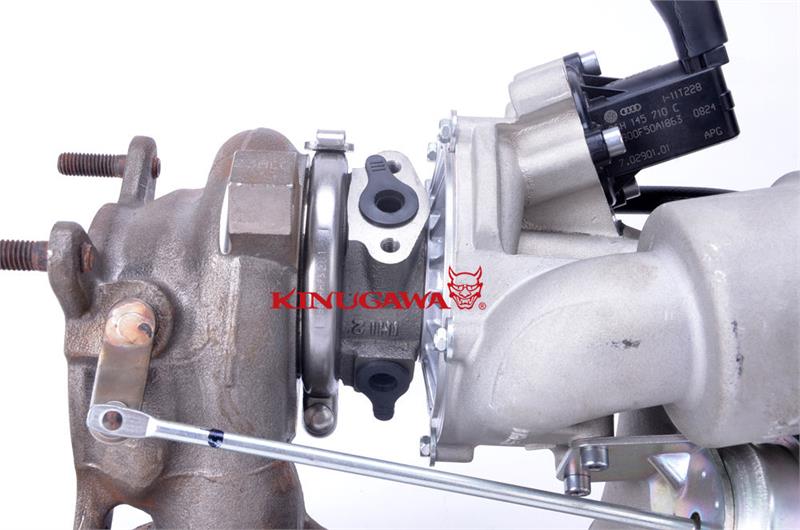

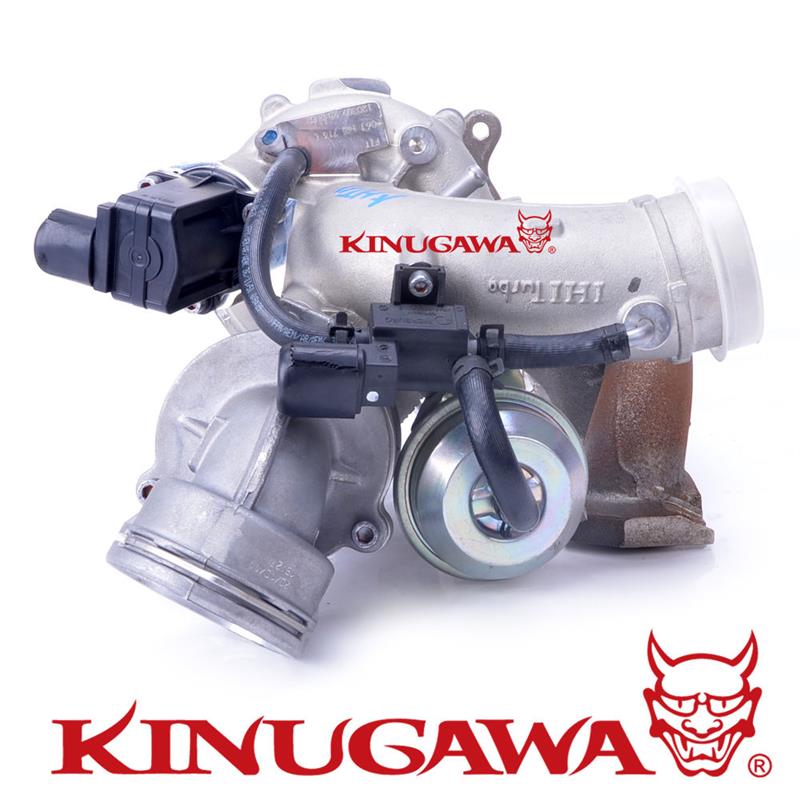

1 x Turbocharger as picture

Made By

Kinugawa Turbo

Warranty

One Year
