urbocharger SR20DET S14 S15 TD06H & Garrett 60-1 8cm / 5 Bolt / T25 450HP
|
Item Number: 0100-837-224
* Whole number only
|
|
|
NISSAN SILVIA SR20DET S14 S15

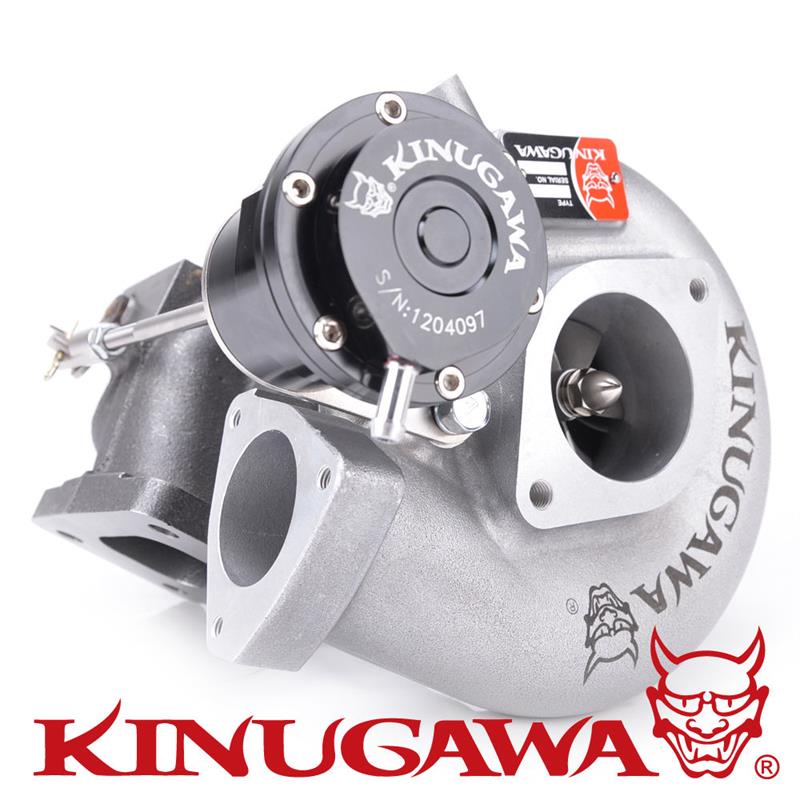

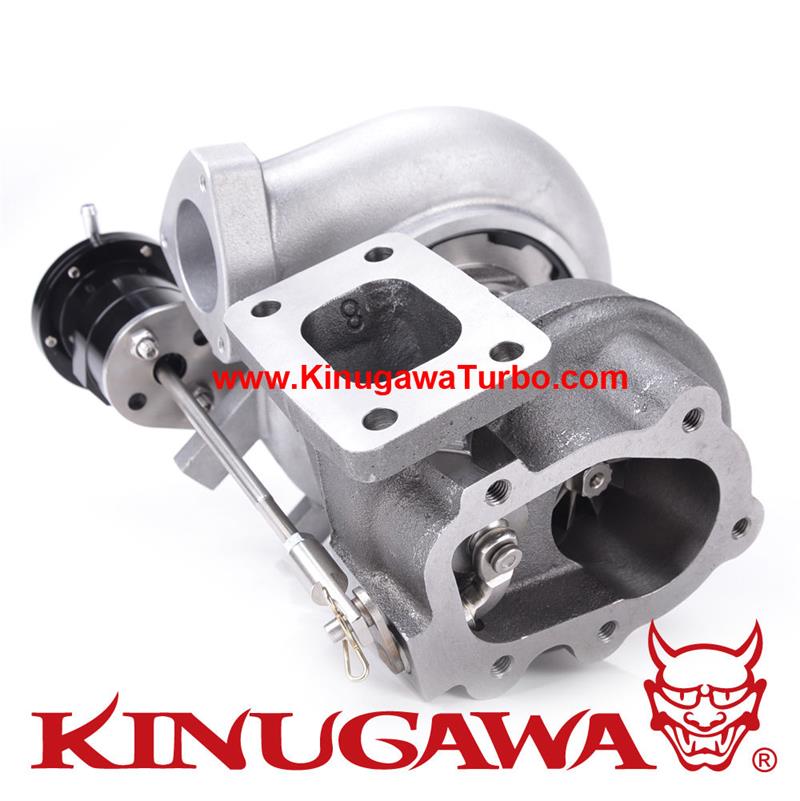

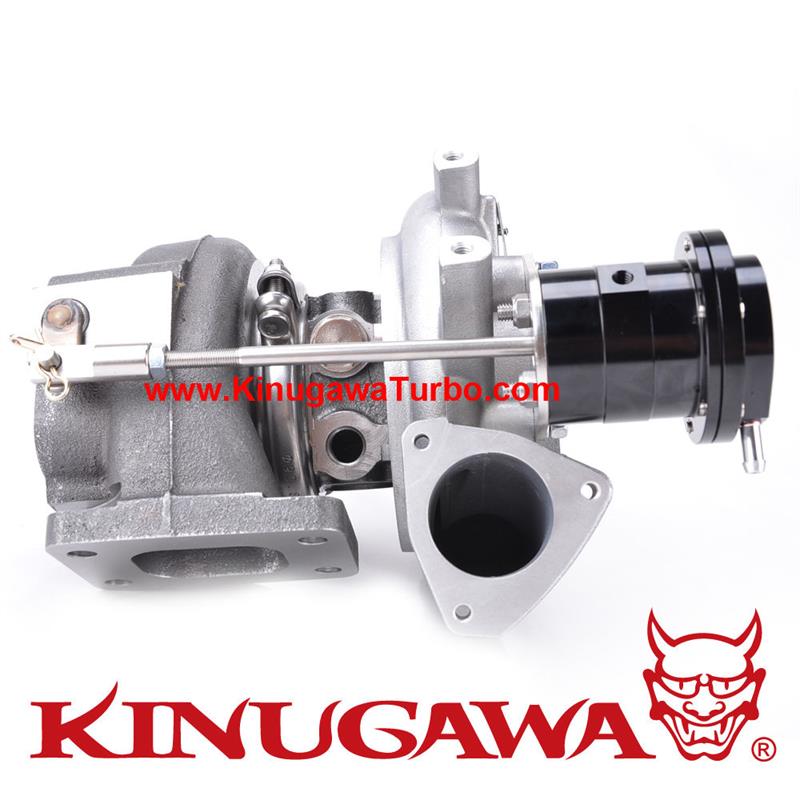

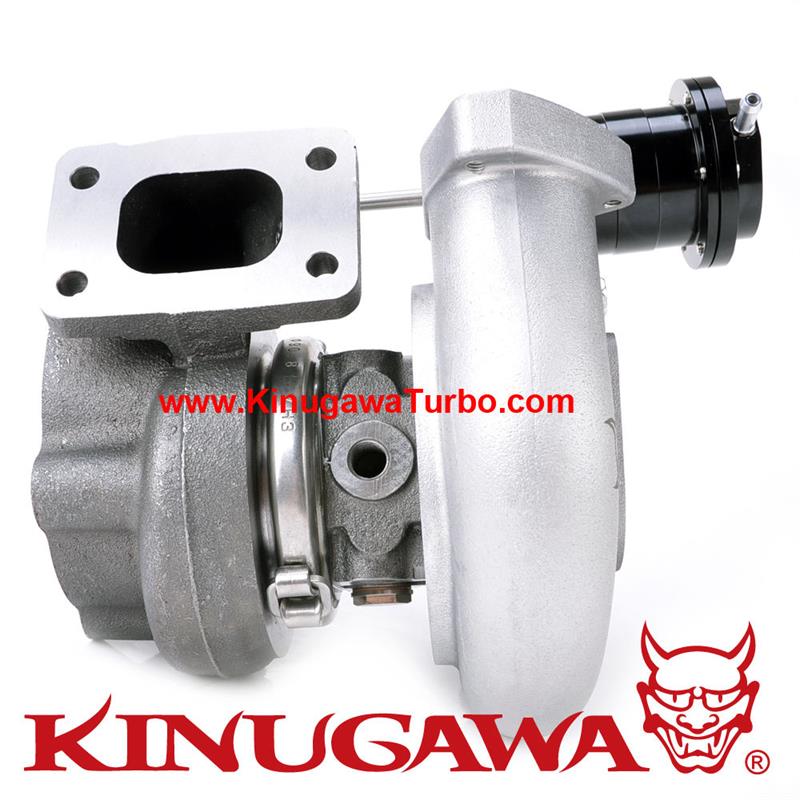

TD06H Turbo with Garrett 60-1 Compressor wheel
|
|
Item Name
|
NISSAN SILVIA TD06H Turbo with Garrett 60-1 Compressor wheel
|
|
Kando_Dynamic P/N.
|
0100-837-224
|
|
Application
|
NISSAN SR20DET SILVIA S14 S15
|
|
Replace Turbo
|
Replace and upgrade stock Garrett T28 turbo direclty
|
|
CHRA Size:
|
Turbine wheel: 58.8/67.2(12 Blades of TD06SL2 )

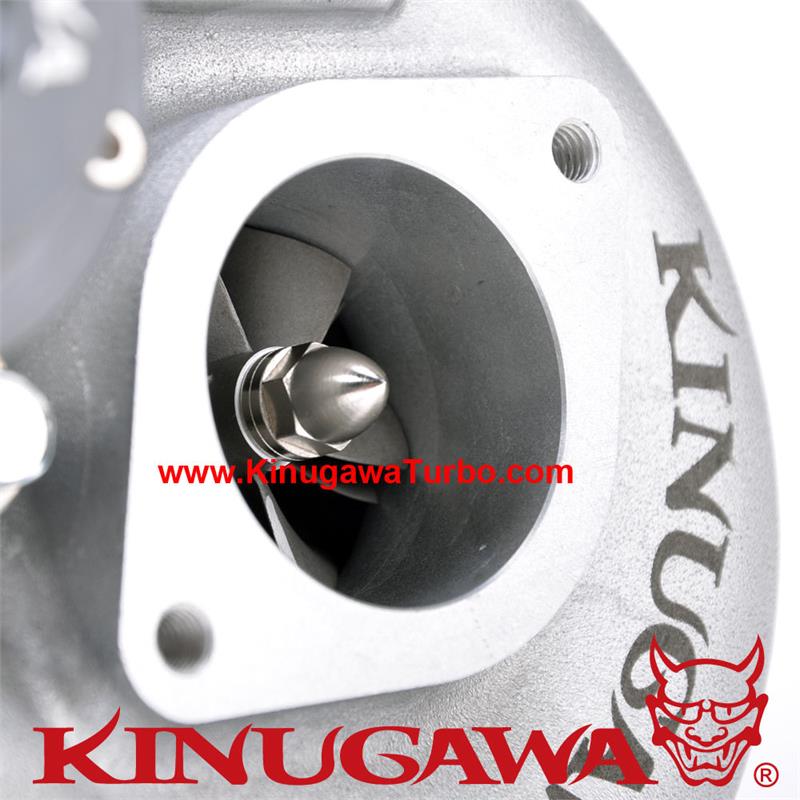

Compressor wheel : 60 / 76 mm( GT 60-1 )
|
|
Turbine Housing
A/R
|
8 cm^2 Ported Turbine Housing
|
|
Flapper
|
34mm Larger Turbine Flapper
|
|
Bearing
Type
|
Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger
|
|
Cooling
Type
|
Water-Cooled
|
|
Actuator
Pressure
|
14 psi
|
|
Max Hp
|
350~420HP
|
|
Turbo Boost Limit
|
2.8 Bar ( Performance bearing kit with larger thrust bearing )
|
|
Suggested Boost
|
1.5 Bar
|
|

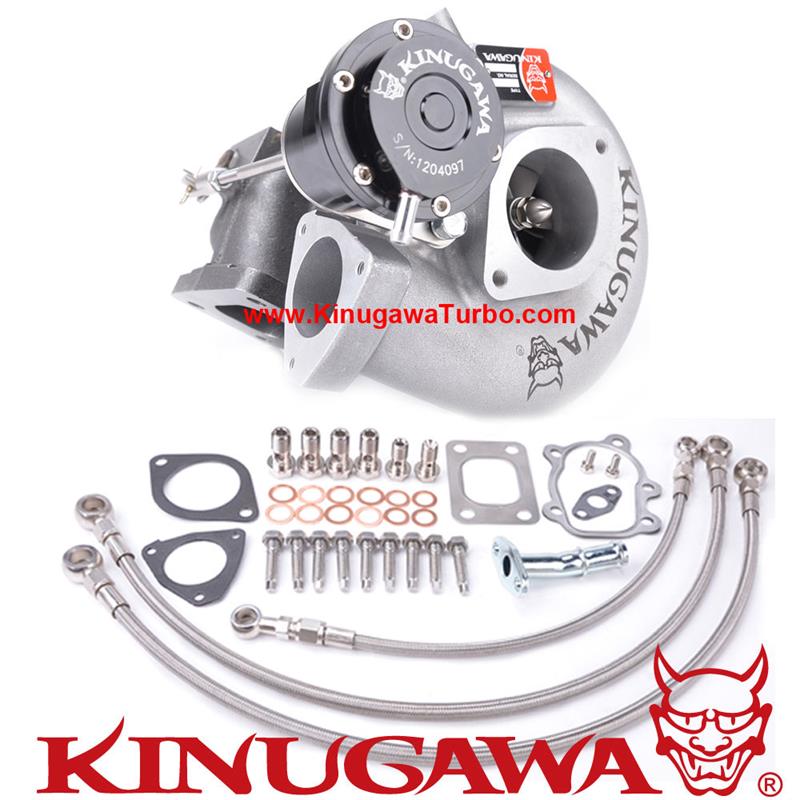

Extra parts Includes
|
l Two Stainless Turbine Gasket
l Oil feed line kit, Oil Drain Pipe kit, water coolant Pipe kit… as pictures on my ebay shop
|
|
Product Situation
|
Brand New / CHRA assembled and QC by Kinugawa Turbo In Sage Japan
|
|
Balance
|
150,000 RPM on VSR
|
|
Net Weight
|
8 KG
|
|
Supplier
|
Kinugawa Turbo
|
|
Warranty
|
One year under Kinugawa Turbo Japan
|
|
|
|
|
